In industrial automation and low-voltage switchgear assembly, minor component failures dictate overall system downtime. Among these, manual control units—specifically pilot devices and push button switches—frequently experience physical drift, structural loosening due to machine vibration, and contact arc-erosion under continuous high-frequency operations.
For commercial panel builders and electrical wholesalers, selecting control components that streamline workshop floor hours while ensuring environmental isolation is critical to securing project margins.

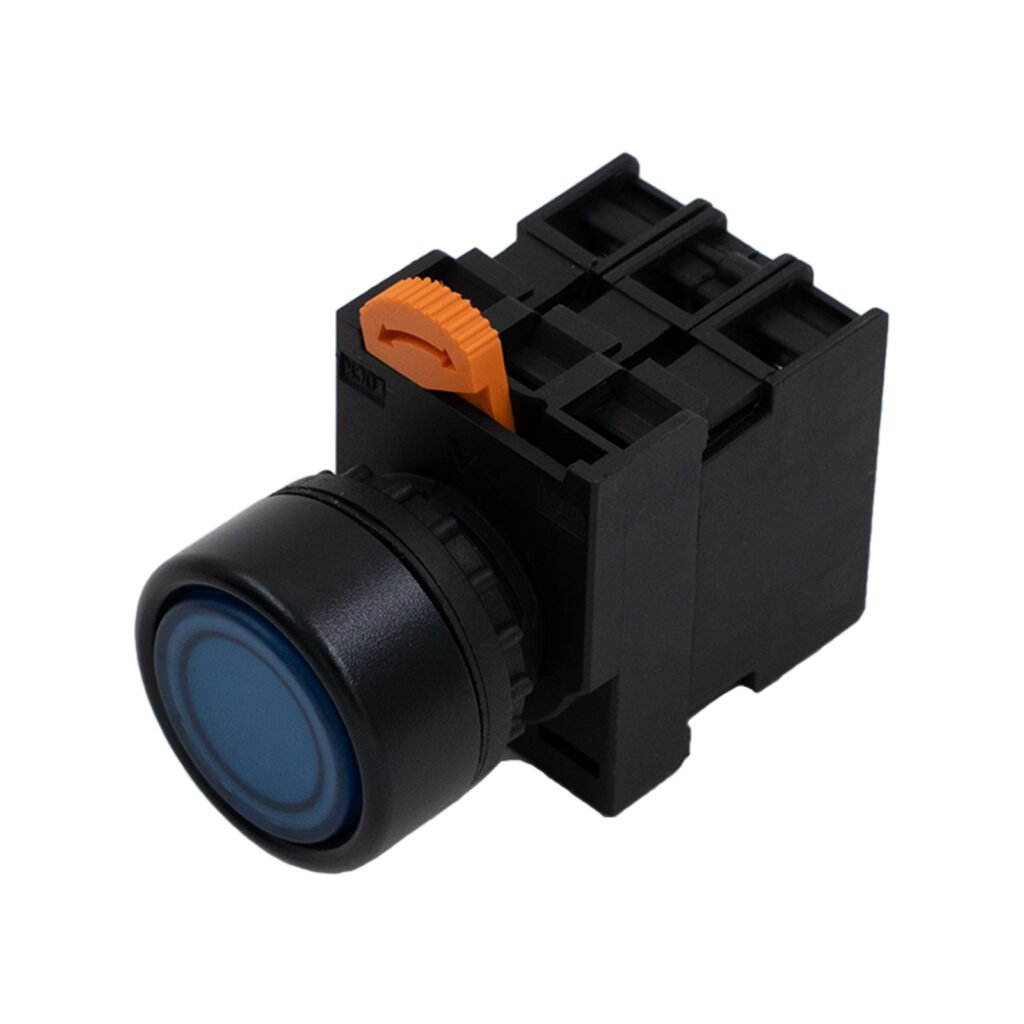

The ACXION 1NO1NC Illuminated Momentary Flat Head Push Button Switch (AC/DC 24V) introduces structural optimizations engineered specifically to address these common workshop and field failure points.
1. Structural Logic: Split-Body Modular Architecture
Standard monolithic push buttons require technicians to manage complex pre-wiring within tightly packed enclosure matrices. This slows down bench assembly and increases the risk of manual wiring faults.
The ACXION momentary push button switch utilizes a streamlined four-part split-body modular configuration:
- Actuator Head: Low-profile flat head designed for clean facial alignment on control panel doors.
- Fixing Collar: High-torque locking collar ensuring secure physical mounting.
- LED Illumination Module: Independent telemetry block delivering crisp status signaling.
- Contact Block (1NO1NC): Detachable termination block featuring heavy-duty screw terminals.
The Workshop Advantage:
This modularity allows production lines to mount the actuator heads to the enclosure matrix as a separate mechanical step. Technicians can wire the contact blocks independently on the bench, effectively doubling panel integration speeds and simplifying field maintenance.
2. Eliminating Switch Rotation and Mechanical Drift
One of the most persistent issues on automated production lines is switch rotation. Under continuous, high-frequency manual actuation or surrounding machinery vibration, standard switches can drift within their 22mm panel cutouts. This movement strains terminal connections and misaligns the visual orientation of the actuator.
To prevent physical loosening, the ACXION flat head switch incorporates an integrated mechanical alignment boss. This anti-rotation centering tab locks permanently into the panel cutout schema, distributing directional impact force into the enclosure frame and eliminating the need for frequent retightening.
3. Optical Telemetry and Contact Integrity
Visual feedback on the factory floor must remain predictable under varied ambient lighting and voltage fluctuations. The integrated LED module operates on a stable AC/DC 24V pipeline, offering a verified 50,000-hour operational longevity. Available in standard industrial signaling colors—Red, Green, Yellow, Blue, and White—the optical output maintains consistent brightness without overheating adjacent contact logic.
| Engineering Parameter | Technical Specification | Operational Impact |
| Contact Configuration | 1NO + 1NC (Normally Open / Normally Closed) | Flexible logic mapping for simultaneous control and telemetry. |
| Contact Material | High-Purity Silver-Plated (Gold Option Available) | Prevents arc-erosion; maintains signal integrity over 1M cycles. |
| Operating Voltage | AC/DC 24V | Standardized compatibility with industrial PLC outputs and relays. |
| Ingress Protection | Encapsulated IP65 Enclosure Rating | Complete isolation against manufacturing dust and liquid ingress. |
4. Environmental Isolation for Severe Manufacturing Demands
Control panels deployed in food processing, chemical packaging, and heavy machining environments face airborne particulate contamination and moisture exposure.
Featuring an encapsulated IP65-rated structural body, this momentary switch provides complete ingress protection against heavy dust layers and low-pressure liquid spray. The internal seal integrity ensures that conductive carbon dust cannot enter the contact block, preserving the insulation resistance and eliminating premature terminal short-circuits.
5. B2B Procurement and Supply Line Optimization
Sourcing pilot devices for large-scale engineering projects requires balancing component performance with batch uniformity and clear cost structures.
ACXION operates as a direct low-voltage component manufacturer, serving international electrical distributors, OEM panel shops, and automation system integrators. By maintaining complete production control, we provide global industrial buyers with stable volume capacity, transparent factory-direct pricing frameworks, and low MOQ allocations tailored for regional distribution networks.
