1NO Momentary Push Button Switch with ↓ Down Arrow Symbol
The ACXION 1NO Momentary Push Button Switch with Down Arrow Symbol is a precision-engineered functional interface designed for intuitive manual signaling. Featuring a high-visibility Down Arrow indicator, this switch provides a reliable 1NO (Normally Open) contact configuration for executing precise downward commands. Built for maximum durability, it offers an exceptional mechanical life of 3 million cycles, making it an essential component for elevator maintenance panels, lift control systems, and automated industrial machinery.
Product Features

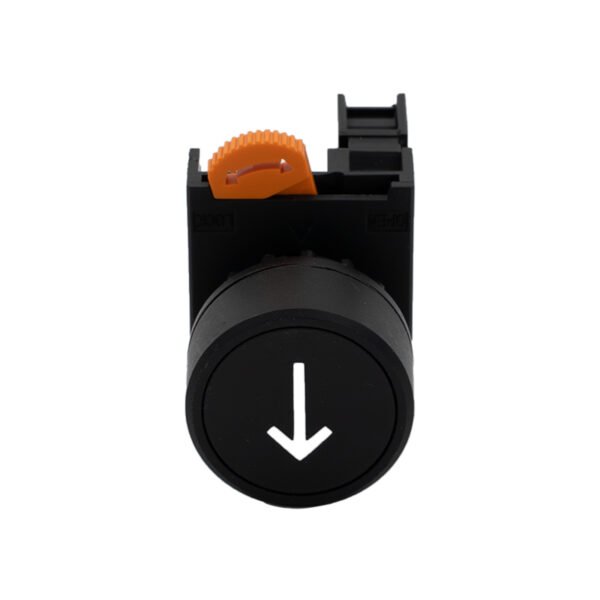

High-Visibility Directional Symbol: The button head features a permanent Down Arrow marking, ensuring quick recognition and operational safety in complex control environments.

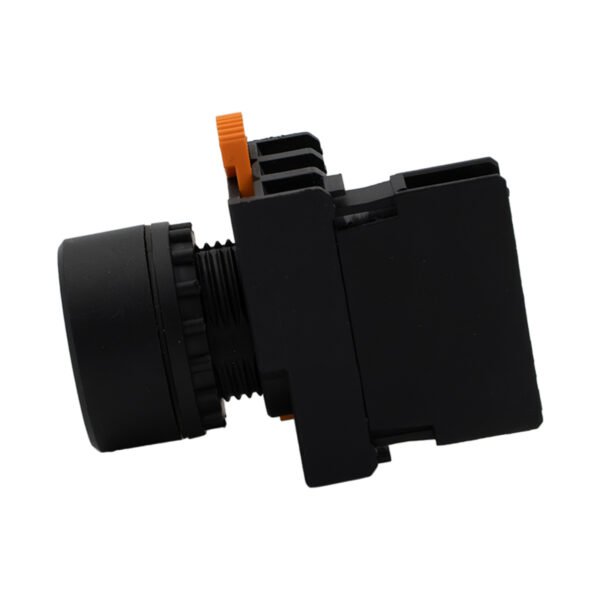

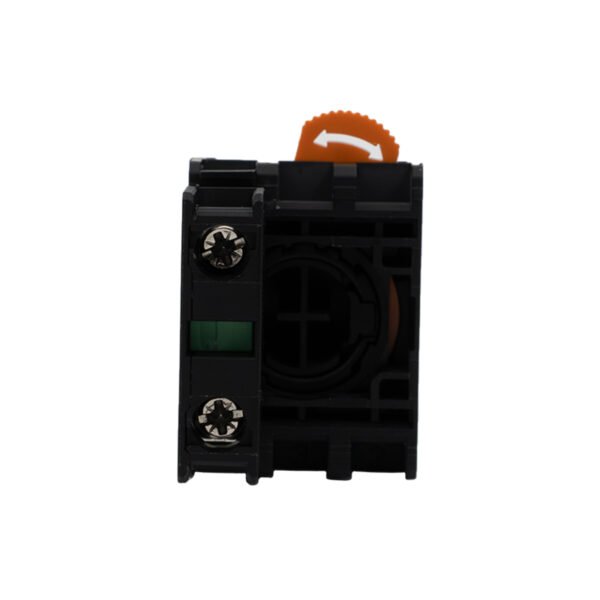

Modular Three-Part Structure: Composed of a modular button head, middle base, and contact assembly. The screw terminal wiring design allows for rapid installation and effortless component replacement.
Superior Operational Longevity: Engineered for heavy-duty industrial use with a mechanical life of 3 million cycles and a customizable electrical life of up to 1 million cycles.
Anti-Rotation Boss Design: Includes an integrated boss that fits precisely into the mounting opening, ensuring the button remains securely positioned and stable during high-vibration operations.
Industrial-Grade Protection: Standard IP65 rating for dust and water resistance (upgradeable to IP66), providing reliable performance in demanding indoor and outdoor engineering projects.
Premium Contact Materials: Equipped with standard silver-plated contacts for stable conductivity; optional gold-plated contacts are available for specialized low-current scenarios.
Technical Specifications
Symbol Type: (Down Arrow / Directional Indicator)
Contact Type: 1NO (Normally Open)
Operation Type: Momentary / Self-reset
Operating Temperature: -25℃ to +70℃
Relative Humidity: 95% (at 25℃, non-condensing)
Safety Standards: IEC60947-5-1 / GB14048.5
Certifications: CCC, CE Certified
Applications
The ACXION 1NO Symbol Switch with Down Arrow is a standardized functional interface used across various high-demand sectors:
Elevator Building Services: An essential component for elevator maintenance panels, lift control systems, and hoisting equipment to execute reliable downward commands.
Industrial Automation: Optimized for lithium battery production lines and automation machinery where directional movement or specific sequence stops are required.
New Energy Infrastructure: A reliable component for EV charging stations and energy storage systems (ESS) to facilitate intuitive user navigation and settings.
Power Distribution: Widely integrated into distribution cabinets, low-voltage switchgear, and motor control units (MCU) for manual overrides.
General Manufacturing: Ideal for textile machinery, printing equipment, and various food processing lines requiring clear functional signaling.
