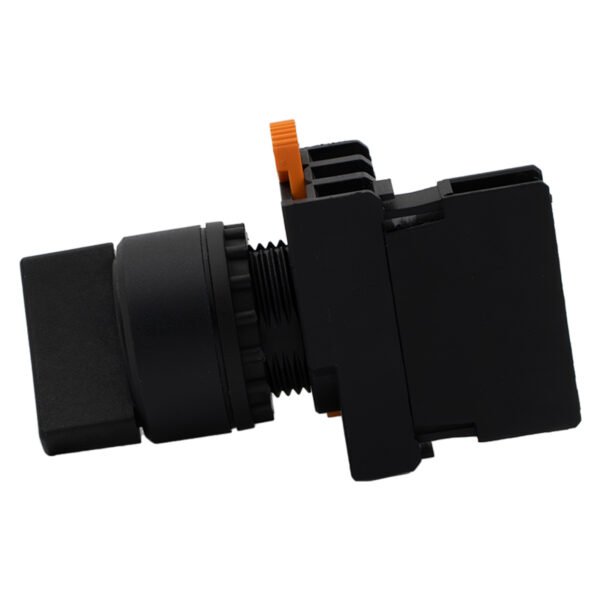

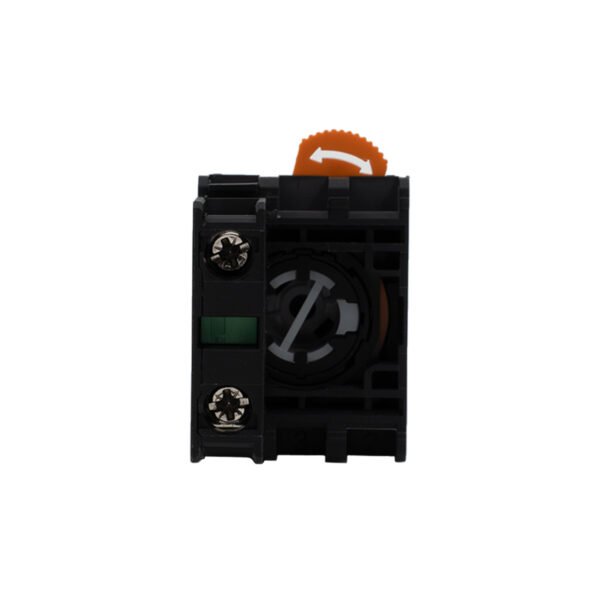

1NO Two-Position 45° Right Rotary Selector Switch

This switch features a practical, modular three-piece design. The rotary knob, middle bracket, and rear screw terminals snap together easily for fast installation and tool-free maintenance. To handle heavy vibration and operator torque without spinning or loosening, the housing is equipped with a built-in anti-rotation alignment tab that locks firmly into the panel cutout. Additionally, its IP65-rated waterproof and dustproof casing keeps internal electrical contacts fully protected from dust and water splashes.

Key Features

45 Degree Maintained Indexing: The stay put rotary switch handle clicks firmly into position at a sharp 45-degree right angle, providing crisp manual feedback and preventing accidental mid-travel drift.

Snap-Together Modular Blocks: Designed as a 3 piece modular push button selector, allowing operators to detach the terminal block from the actuator head instantly for easy wiring upgrades.

High Conductivity 1NO Logic: Equipped with an industrial 1NO electrical contact capable of handling heavy electrical loads across automated production lines and low-voltage control boxes.

Anti-Spin Chassis Alignment: Features a built-in locking boss that anchors the switch body directly to the panel frame, protecting rear wires from getting pulled or snapped during rough manual handling.

Weatherproof Ingress Protection: The standard IP65 dust tight control switch design shields sensitive components from harsh factory environments, with factory options to upgrade to IP66.

Technical Specifications

Market Search Classification: 22mm industrial rotary control switch

Switching Logic Setup: 1NO (Single Normally Open Contact Block)

Rotational Indexing Angle: 45-Degree Right Side Throw

Actuator Operational Type: Maintained Action / Self-Locking Stay-Put

Mechanical Lifecycle Rating: 1,000,000 Continuous Switching Operations

Ambient Working Temperature: -25°C to +70°C for extreme plant climates

Global Compliance Standards: Certified for international IEC60947-5-1 electrical safety and GB14048.5 with full CE & CCC marks

Target Applications

Industrial Automation Machinery
Utility-Scale Power Distribution
New Energy Infrastructure
Industrial Textile Machinery
Elevator Building Services

Technical & Procurement FAQ

Q1: Can this 22mm panel mount selector switch handle continuous vibration on heavy machinery?
A1: Yes, absolutely. Cheaply made switches often slip, twist, and spin inside their panel holes after a few months of heavy daily use, which easily tears the wires right out of the rear terminals. Our switch is engineered with a built-in anti-rotation guide tab on the housing collar that seats perfectly into standard panel notches. This keeps the whole body completely stable, even when operators twist it aggressively on high-vibration CNC or textile machines.

Q2: What are the main benefits of buying an industrial 1NO electrical contact switch with a modular design?
A2: A 3-piece modular design makes panel assembly and field maintenance incredibly fast. Instead of struggling to wire a fully assembled switch inside a crowded electrical box, you can wire the contact blocks separately, snap them onto the middle base, and lock the rotary head into place without needing specialized tools. It significantly cuts down on labor costs for large engineering projects.

Q3: Is it possible to upgrade the standard IP65 dust tight control switch for outdoor installations?
A3: Yes. Out of the box, our standard IP65 enclosure handles heavy factory dust, airborne debris, and low-pressure water splashes perfectly, which is great for indoor control cabinets. If your project involves outdoor power panels, water treatment systems, or environments requiring frequent chemical washdowns, just let us know during your inquiry—our factory can easily upgrade the internal seals to an IP66 rating.

Q4: Can your factory supply these switches with gold-plated terminals for low-current circuits?
A4: Yes, we can do that directly at our production plant. While our standard silver-plated contacts are excellent for typical industrial power routing, low-voltage electronic circuits and PLC data loops can sometimes suffer from micro-oxidation. We offer high-purity gold-plated contact blocks as a factory customization to guarantee flawless digital signaling for your automation logic.

Why Choose ACXION

When you choose ACXION, you are dealing directly with a premier manufacturing plant that handles the entire production cycle—from raw material selection to final electrical testing. Sourcing factory-direct removes trading company markups, giving your project access to real wholesale prices, consistent B2B quality standards, and reliable shipping timelines.

Our facility is equipped with high-precision injection molding, contact terminal stamping, and dedicated automated assembly lines, allowing us to maintain rigorous quality control while ensuring fast delivery for high-volume engineering demands and machinery manufacturing needs worldwide.
