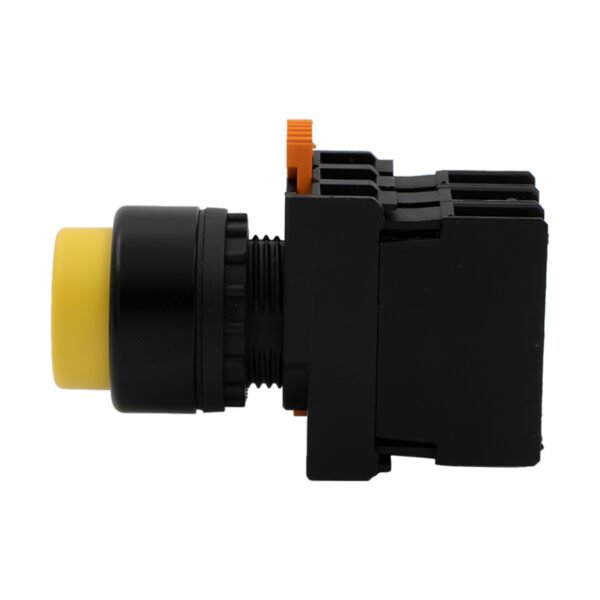

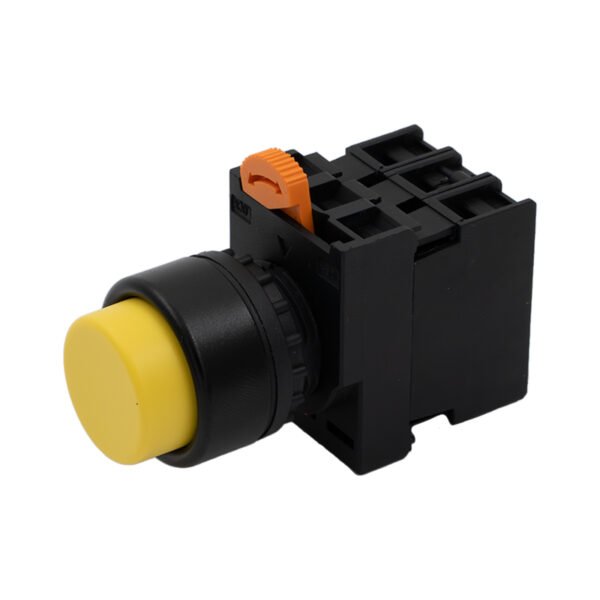

1NO1NC Latching Raised Head Push Button Switch

Product Description

The ACXION 1NO1NC Latching Raised Head Push Button Switch is a heavy duty command component engineered for systems requiring a maintained electrical state and reliable dual signal feedback. Operating via a precise self locking mechanism, the button permanently stays depressed upon the first push, holding its position until it is pressed a second time to release. This robust design removes the risk of accidental state changes caused by operator distraction or sudden power fluctuations. Built with a modular three piece layout separating the actuator head, mounting holder, and rear contact blocks, it allows panel builders to complete rapid field installations and streamline routine terminal maintenance loops.

Our manufacturing facility produces these switches to endure demanding industrial environments, delivering a standard mechanical lifespan of 1 million operations and a customizable electrical durability rating up to 1 million cycles. To solve common field issues caused by heavy plant vibration, the collar incorporates an integrated structural boss that anchors the switch firmly inside standardized panel notches to eliminate physical loosening or twisting. The rugged housing provides standard IP65 dust and water resistance, with optional upgrades to IP66 to protect internal contact terminals during outdoor equipment deployments or intensive washdown procedures.

Key Features

    Maintained Latching Action: Stays locked in position when pushed to keep circuits active, requiring a second firm press to release and reset the system state.

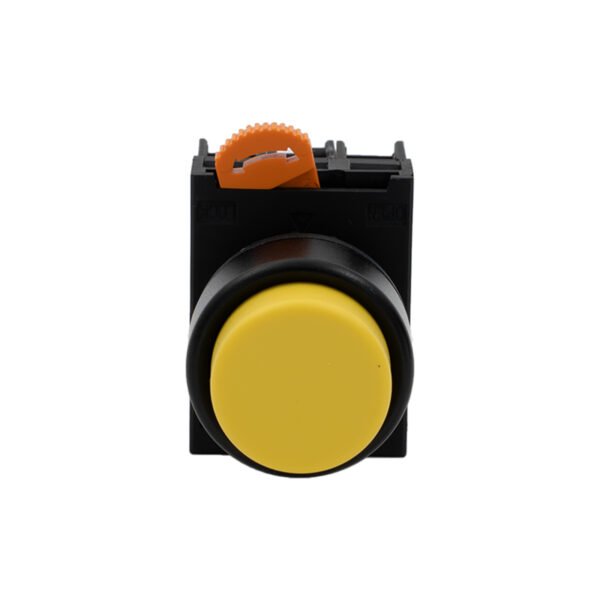

    Extended Raised Profile: The prominent button head stands out clearly on crowded control layouts, making it easier for operators to find and use in high traffic plant environments.
    Three Piece Modular Build: Separates into an independent actuator head, mounting holder, and terminal block for quick tool free panel attachment and straightforward wiring checks.
    Anti Spin Base Housing: Features a molded alignment tab that locks into the panel cutout edge, stopping the switch from spinning or breaking rear wire connections under vibration.
    Industrial IP65 Protection: Sealed body blocks dust infiltration and low pressure water spray, making it highly reliable for indoor cabinets and outdoor industrial setups.

Technical Specifications

    Switch Type: Latching / Self Locking Maintained Button

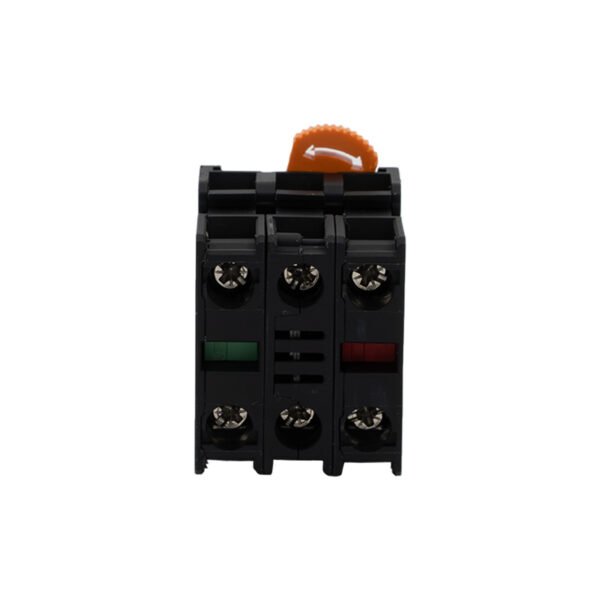

    Contact Block Layout: 1NO1NC One Normally Open and One Normally Closed
    Mechanical Service Life: 1,000,000 Standard Cycles
    Ingress Protection Rating: Standard IP65 Dust and Waterproof (Upgradeable to IP66)
    Operating Temperature Limits: -25C to +70C
    Ambient Working Humidity: 95 percent at 25C non condensing
    International Compliance Standards: Designed to IEC60947-5-1 and GB14048.5 with full CCC and CE certifications

Target Applications

Industrial Production Panels: Deployed extensively on automotive assembly lines and automated machinery to hold long term processing modes or lock automated systems into place.
Elevator Inspection Enclosures: Integrated directly into lift car tops and vertical transport maintenance boxes to lock the system into service mode during technician inspections.
Power Control Cabinets: Used in industrial low voltage switchgear and distribution boards to lock in manual power routing states or establish specific circuit interlocks.
Outdoor Infrastructure Enclosures: Ideal for commercial pumping stations, processing yards, and environmental equipment where the internal contacts must remain sealed against dust and water.

Frequently Questions and Answers

Q1: What exactly does latching operation mean for this push button switch?
A1: Latching means the button maintains its position after you push it. When an operator presses the raised head, it clicks and locks into the down position, keeping the 1NO1NC circuits switched. The button will not pop back up until it is pushed a second time, acting like a stay put toggle switch.

Q2: Can we purchase this switch with custom contact arrangements and custom electrical ratings directly from your factory?
A2: Yes, buying factory direct allows you to request customized technical specifications. We manufacture standard 1NO1NC blocks with an impressive 1 million cycle mechanical life, but our production plant can adjust contact arrangements or upgrade electrical duty cycles to fit your specific engineering schematics.

Q3: How does the raised head design benefit machine operators compared to flush buttons?
A3: The extended raised profile provides a clear physical and visual indicator of the switch status on a crowded control panel. Operators can easily locate the button in busy environments, and the physical height difference makes it simple to confirm whether the system is locked or released at a quick glance.

Q4: What stops this latching push button from loosening or spinning when mounted on heavy, vibrating machinery?
A4: Budget switches often spin in their panel cutouts over time, which strains and breaks the rear terminal wires. Our industrial switch features a molded anti rotation boss on the housing body that locks into standardized panel notches, ensuring total structural stability even under constant industrial vibrations.

Q5: What are your factory direct ordering terms regarding MOQ and global project support?
A5: ACXION support procurement managers and wholesale distributors by offering a flexible low MOQ framework, allowing you to secure precise sample counts for engineering audits without heavy upfront costs. Dealing directly with our factory guarantees competitive pricing and predictable production lead times for international engineering projects.
