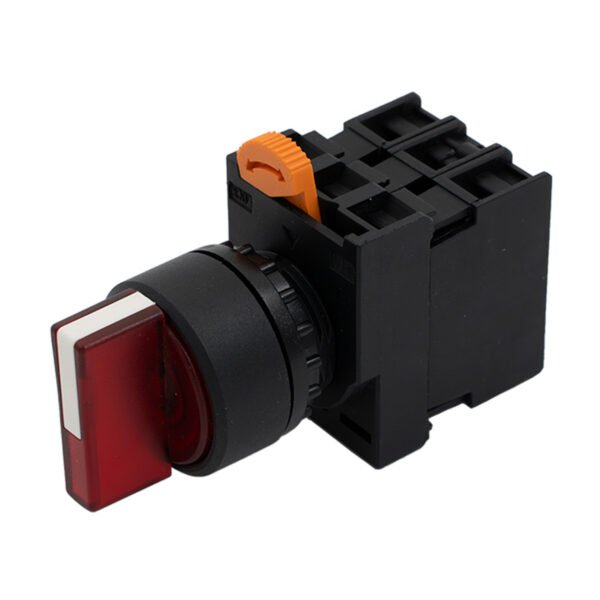

1NO1NC Two-Position Double Latching Illuminated Rotary Selector Switch, DC 24V
The ACXION 1NO1NC Two-Position Double Latching Illuminated Rotary Selector Switch (DC 24V) is a high-performance control component engineered for stable circuit state retention and real-time visual monitoring. Featuring a robust stay-put (maintained) mechanism and an integrated high-brightness LED, this switch ensures the selected operational mode remains locked and clearly visible. With a mechanical life of 1 million cycles and dual-circuit flexibility, it is the ideal interface for power distribution, automated production lines, and energy storage systems.
Product Features
Dual-Position Latching Action: The secure stay-put mechanism ensures the knob remains firmly in the selected position (Left or Right), providing a constant signal for critical Manual/Auto or On/Off transitions.
Integrated 24V LED Indication: Equipped with a long-life LED module (50,000 hours) available in five vibrant colors (Red, Green, Yellow, Blue, White) for immediate operational status recognition.
1NO1NC Contact Configuration: Standard 1NO1NC (Normally Open + Normally Closed) logic allows for simultaneous switching of two independent circuits, enhancing control versatility in a single compact unit.

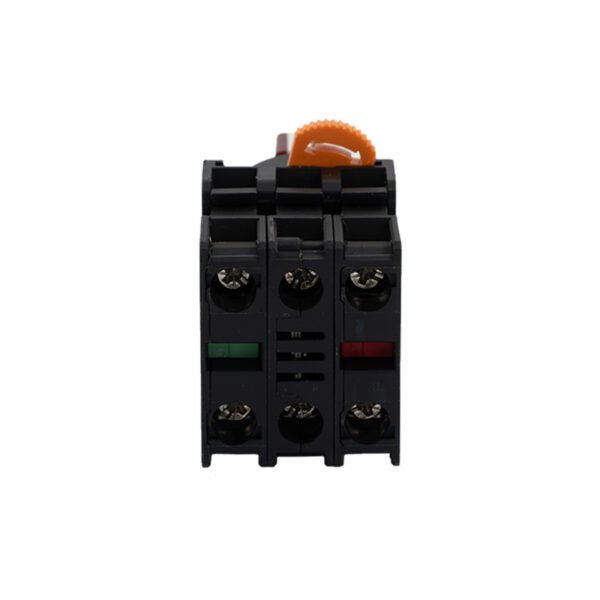

Four-Part Modular Construction: Composed of an illuminated button head, middle base, LED module, and contact assembly. The screw terminal wiring design ensures fast, secure installation and simplified maintenance.
Anti-Rotation Stability: Featuring a raised boss design that fits precisely into the mounting cutout, preventing the switch head from shifting or loosening during heavy-duty manual operation.
Industrial Protection (IP65/IP66): Standard IP65 dust and water resistance (upgradeable to IP66), providing reliable performance in both indoor distribution cabinets and rugged outdoor equipment.
Technical Specifications
Positions: Two-Position (Left – Right)
Operation Type: Latching / Maintained (Stay-put)
Illumination Voltage: DC 24V (Industry Standard)
Contact Type: 1NO1NC (Normally Open + Normally Closed)
Mechanical Life: 1,000,000 Cycles
Operating Temperature: -25℃ to +70℃
Certifications: CCC, CE Certified
Applications
The ACXION Illuminated Latching Selector Switch is a field-proven solution for systems requiring secure mode selection and visual guidance:
Power Distribution: A primary choice for distribution cabinets and low-voltage switchgear to ensure secure mode selection and permanent status indication.
Industrial Automation: Optimized for lithium battery production lines and CNC machinery where maintaining a fixed operational state is essential for system stability.
New Energy Infrastructure: Essential for energy storage systems (ESS) and EV charging stations to provide clear functional locking and status visibility.
Elevator Building Services: A reliable solution for elevator maintenance panels, offering technicians secure position retention and visual confirmation during service modes.
General Manufacturing: Suitable for textile machinery and food processing lines requiring durable, illuminated manual interfaces for long-term cycle control.
