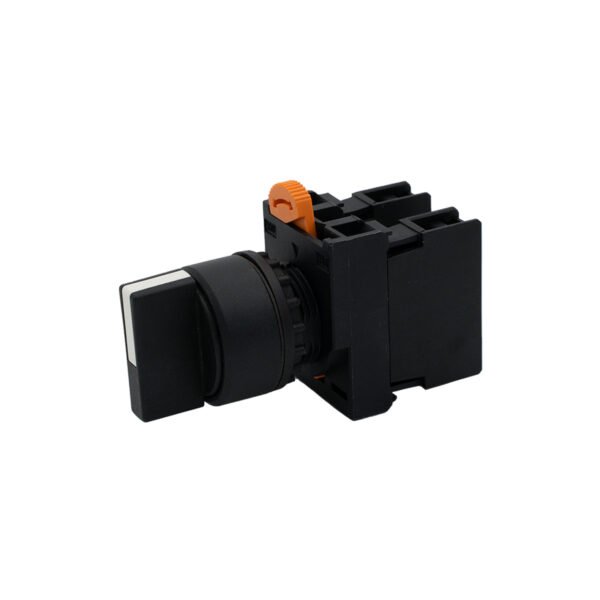

2NO Three-Position Double Momentary Rotary Selector Switch

Product Description

The ACXION 2NO Three-Position Double Momentary Rotary Selector Switch is a factory-direct industrial control component engineered for systems requiring temporary, directional pulse commands rather than maintained state changes. Operating via a heavy-duty dual spring-return mechanism, the rotary handle automatically snaps back to the neutral center position (O) the instant manual pressure is released from either the left (I) or right (II) position, providing a critical self-centering safety safeguard for jog controls and forward/reverse machinery loops. Built with a modular three-piece assembly that separates the rotary knob head, mounting holder, and dual Normally Open (2NO) contact blocks, it simplifies panel wiring and installation logistics while incorporating an integrated anti-rotation guide tab that locks firmly into standardized panel notches to eliminate housing slippage and rear wire strain under high manual torque.

Key Features

Double Momentary Action: Dual internal springs force the knob back to the neutral center position from both the left and right sides instantly when released.
Dual Normally Open Logic: Outfitted with a 2NO configuration to independently trigger separate directional circuits from a single interface.
Three-Piece Modular Build: Isolates the rotary head, middle base, and contact blocks for quick, tool-free panel mounting and straightforward wiring audits.
Anti-Spin Housing Design: A molded structural boss fits precisely into standard panel cutouts to eliminate switch body twisting and loosening over time.
Industrial Ingress Sealing: Standard IP65 dust and waterproof chassis blocks fine debris and low-pressure water spray, with factory upgrades available to IP66.

Technical Specifications

Selector Positions: Three-Position (Left – Center – Right / I – O – II)
Operational Type: Double Momentary / Dual Spring-Return to Center
Terminal Configuration: 2NO (Two Normally Open Contacts)
Mechanical Service Life: 1,000,000 Standard Operations
Working Temperature Boundaries: -25C to +70C
Ingress Protection Rating: Standard IP65 Waterproof & Dustproof (Upgradeable to IP66)
Quality Standards: Fully aligned with IEC60947-5-1 and GB14048.5 with CE and CCC certifications

Applications

Motor Direction Control
Valve Actuation Panels
Material Handling Lifts
Automotive Assembly Lines
Packaging Automation

Frequently Questions and Answers

Q1: How does a double momentary switch differ from a standard latching three-position switch?
A1: A latching switch clicks into the left or right position and permanently stays there until turned back. This double momentary switch behaves like a spring-loaded toggle; it only closes the chosen circuit while an operator actively holds the knob to the left or right. The moment they let go, the switch snaps back to the center position and opens the circuit.

Q2: Can your manufacturing lines configure this switch with a mix of NO and NC contact blocks for large engineering orders?
A2: Yes. When you buy wholesale directly from our production plant, you gain access to full OEM and ODM component customization. While this standard model utilizes a 2NO configuration, our modular tracking system allows us to easily supply custom contact stacks or integrate high-purity gold-plated terminals to meet your exact wiring schematics.

Q3: What prevents this rotary switch from twisting or loosening inside the panel when operators turn it rapidly?
A3: Aggressive manual twisting can cause lower-grade switches to spin inside their cutouts, which tears the rear wires away from the terminals. Our industrial-grade design features a molded anti-rotation boss on the housing body that locks securely into standard panel notches, keeping the entire switch perfectly stable under heavy daily handling.

Q4: What are your factory direct wholesale terms regarding minimum order quantities and shipping logistics?
A4: We support industrial distributors and procurement managers by offering highly competitive tiered wholesale pricing and a flexible, low MOQ framework. This structure allows engineering teams to secure exact sample counts for laboratory audits and project validation phases without incurring heavy upfront capital outlays.
