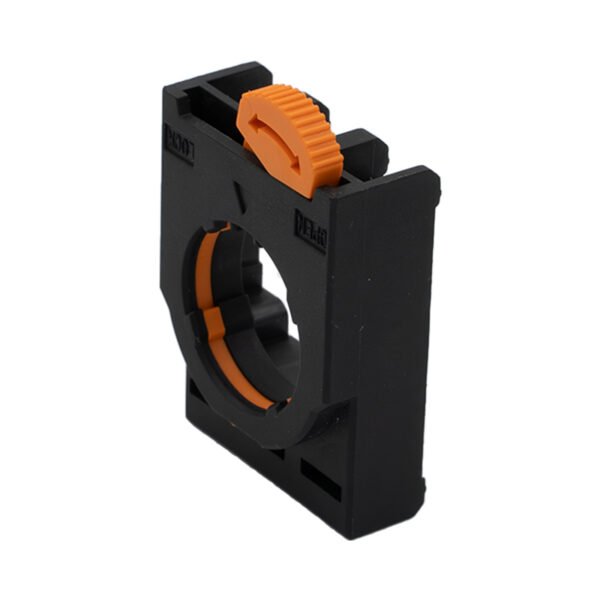

Frame for Push Button Switches

Features:

1. Standardized interface: Mounting hole size 22, compatible with mainstream push button switch heads, solving multi-model compatibility challenges.

2. Easy installation: Push-in lock technology allows one-handed assembly and disassembly for quick maintenance.

Applications:

The ACXION Frame for Push Button Switches is the essential structural backbone of the modular control system. This high-strength mounting base ensures a precise and secure connection between the actuator head and the electrical contact blocks:

Industrial Automation: The standard mounting platform for lithium battery production lines and automated machinery, supporting high-frequency manual operations.

Elevator Building Services: A reliable foundation for elevator control stations and maintenance panels, ensuring components remain locked under vibration.

Power Distribution: Integrated into distribution cabinets and switchgear to hold multiple contact configurations in a compact, organized layout.

New Energy Infrastructure: Used in EV charging hubs and ESS panels for robust housing of control and signaling modules.

General Manufacturing: A universal frame for all modular pilot devices in textile, food processing, and heavy-duty machinery.

Technical Advantage: Features a reinforced snap-on locking mechanism for quick, tool-free assembly. The precision-molded design provides a rock-solid fit for standard 22mm components, reducing installation time and ensuring long-term mechanical stability.

Operating Environment:

Temperature: -25℃ to +70℃

Humidity: 95% (at 25℃, non-condensing)

Safety Certification:

Complies with IEC60947-5-1 / GB14048.5 standards; CCC and CE certified.
