Momentary Flat Push Button Switch Head
ACXION Momentary Raised Push Button Switch Head is a spring-return button head without illumination — built for panel builders and wholesale buyers who prioritize tactile operability and fast actuation over panel aesthetics. The raised profile makes it the easiest button type to locate and press by feel in busy industrial environments. Available in multiple colors with IP65 protection as standard.

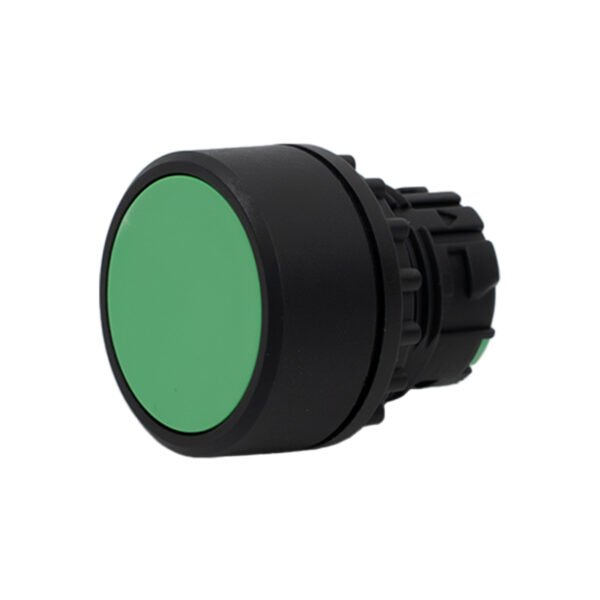

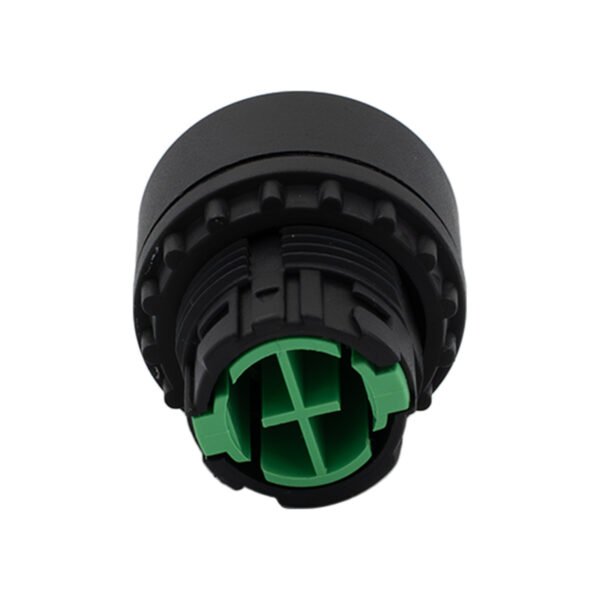

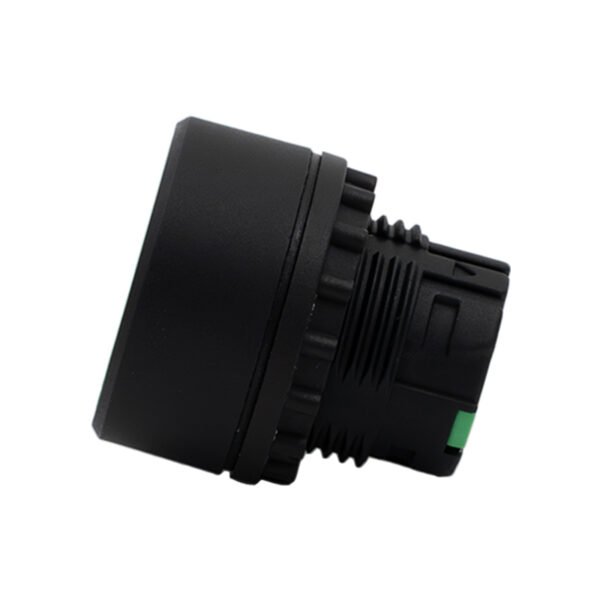

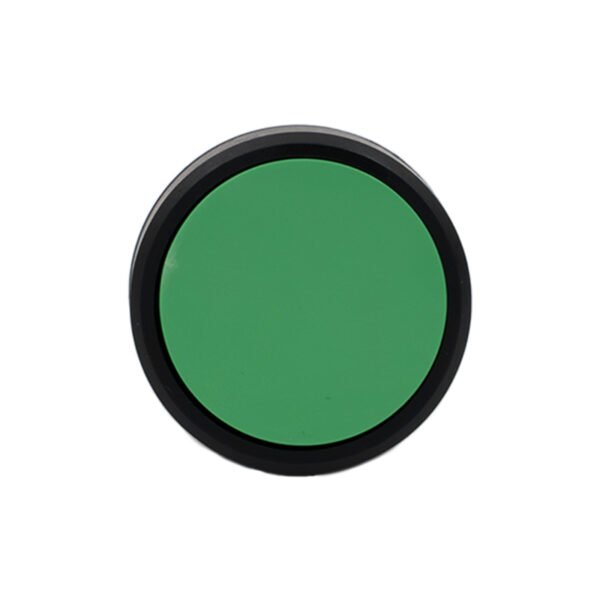

The ACXION Momentary Flat Push Button Switch Head pairs with contact blocks and a mounting frame to form a complete momentary push button switch. The flat profile sits flush with the panel surface at rest and returns immediately on release — no latching, no LED, no key. This simplicity makes it the go-to head for dense panel layouts where multiple buttons are mounted close together and a protruding raised head would increase the risk of accidental actuation. It is also the cleanest-looking option for equipment where panel appearance is part of the product specification. IP65 as standard, extendable to IP66.
SPECIFICATIONS:
Type: Momentary flat push button, no illumination
Standard Colors: Red, Green, Yellow, Blue, White
IP Rating: IP65 standard; IP66 available
Mechanical Life: 1,000,000 cycles
Operating Temperature: -25°C to +70°C
Standards: IEC 60947-5-1 / GB14048.5
Certifications: CCC, CE
APPLICATIONS:
Suitable for machine tool control panels, elevator car operating panels, medical equipment consoles, HVAC control interfaces, and any application where a compact flush-mount momentary button is required.
FAQ:
Q1: When is a flat head preferable over a raised head for momentary applications?
A flat head is preferred when buttons are mounted close together and accidental actuation of an adjacent button is a concern. The flush surface also gives a cleaner panel finish, which matters for equipment sold into commercial or consumer-facing environments where appearance is part of the product specification.
Q2: This head has no LED — how do operators know the button has been pressed?
The tactile feedback of the button travel confirms the press. For applications where visual confirmation is important, either add a separate indicator light to the panel or switch to the momentary illuminated flat head, which includes a built-in LED wired to an independent status circuit.
Q3: Can I order this head in custom colors or with custom markings on the button surface?
Standard colors are red, green, yellow, blue, and white. For custom surface markings or colors outside the standard range, contact us with your requirements and we will confirm feasibility and lead time.
