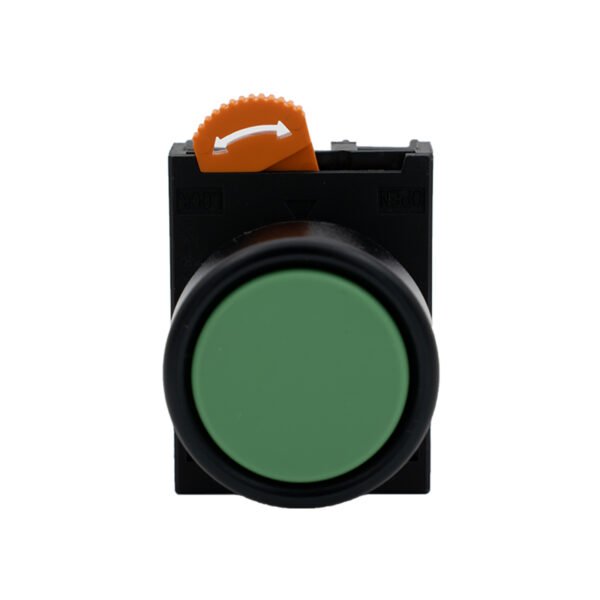

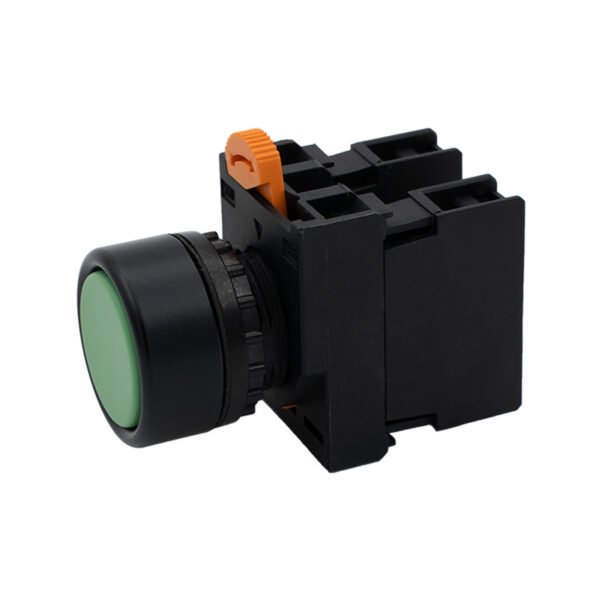

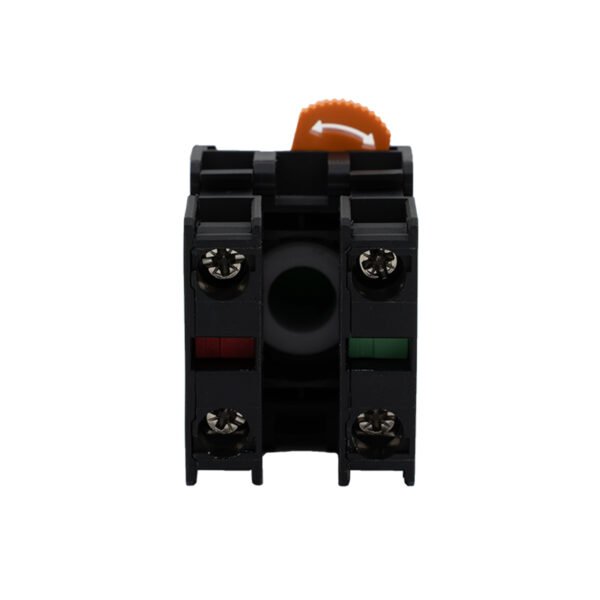

1NO Latching Flat Head Push Button Switch

Product Description

The 1NO Latching Flat Head Push Button Switch is a streamlined control interface designed for industrial systems requiring a sustained power state. Operating via a self locking mechanism, the flat button head securely locks down upon the first press, maintaining a continuous closed circuit until pressed a second time. This flush profile sits tight against the panel surface, reducing the risk of accidental activation caused by passing personnel or moving equipment in tight factory workspaces.

Constructed with a modular three part design that isolates the flat actuator head, mounting base, and screw terminal contact block, this switch drastically reduces field labor during installation and maintenance loops. Our manufacturing facility utilizes high conductivity silver plated contacts as standard, while offering factory direct gold alloy plating options for low current electronic loops. To withstand continuous machinery vibrations, the housing incorporates a molded anti rotation boss that locks directly into standardized panel cutouts, ensuring total structural stability.

Key Features

Flush Flat Profile: Sits nearly flush with the panel surface to eliminate snagging and prevent accidental contact activation.

Sustained Latching Action: Self locking design maintains a stable, continuous signal until a second press resets the system.

Three Piece Modular Build: Separates into an independent head, base holder, and detachable contact block for fast tool free installation.

Vibration Resistant Anchor: Integrated anti rotation housing boss fits tightly into panel notches to prevent the switch from spinning or loosening.

Factory Material Options: Standard units feature highly conductive silver contacts, with optional gold plating available for low voltage electronic signaling.

Technical Specifications

    Switch Interface Design: Flat Head Flush Profile Button

    Circuit Configuration: 1NO (One Normally Open)

    Operational Mechanism: Latching / Self Locking (Stay Put)

    Mechanical Performance Rating: 1,000,000 Standard Cycles

    Ingress Protection Rating: Standard IP65 Dust and Waterproof (Upgradeable to IP66)

    Working Temperature: -25C to +70C

    International Compliance Standards: Aligned with IEC60947-5-1 and GB14048.5 with full CE and CCC compliance

Frequently Questions and Answers

Q1: Why should an industrial buyer choose a flat head push button instead of a raised head switch?
A1: Flat head switches are chosen to prevent accidental operation. Because the button face sits flush against the panel, it cannot be accidentally bumped or clicked by operators walking past, making it much safer for long term power control.

Q2: This switch comes with a 1NO contact layout. Can your factory supply it with a different terminal configuration for large wholesale orders?
A2: Yes. When you buy wholesale directly from our factory, you have full access to flexible OEM and ODM component modifications. Our production lines can customize the contact stack to include alternative layouts or integrate specialized gold plated terminals.

Q3: Can the standard IP65 protection handle outdoor environments, and how do we request the IP66 upgrade?
A3: The standard IP65 rating provides excellent protection against common industrial dust and low pressure water splashes. If your project involves rugged outdoor equipment or intensive washdowns, you can coordinate directly with our team to upgrade the order to IP66 sealing.

Q4: How does purchasing factory direct from ACXION benefit engineering buyers regarding MOQ and pricing?
A4: Sourcing directly from our manufacturing plant eliminates trading company markups, allowing you to secure competitive wholesale pricing. We also provide a flexible low MOQ framework to help you obtain exact sample counts for early stage testing without heavy upfront costs.
