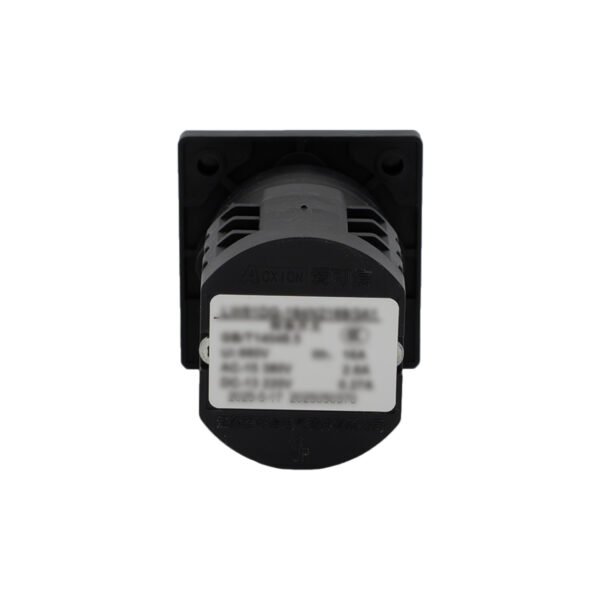

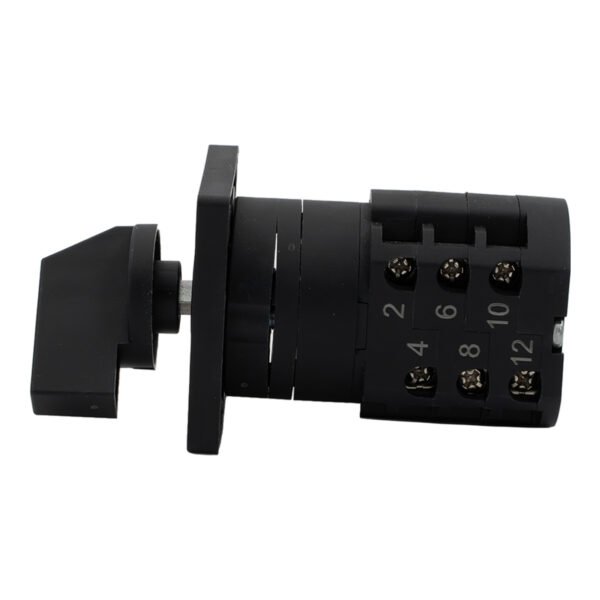

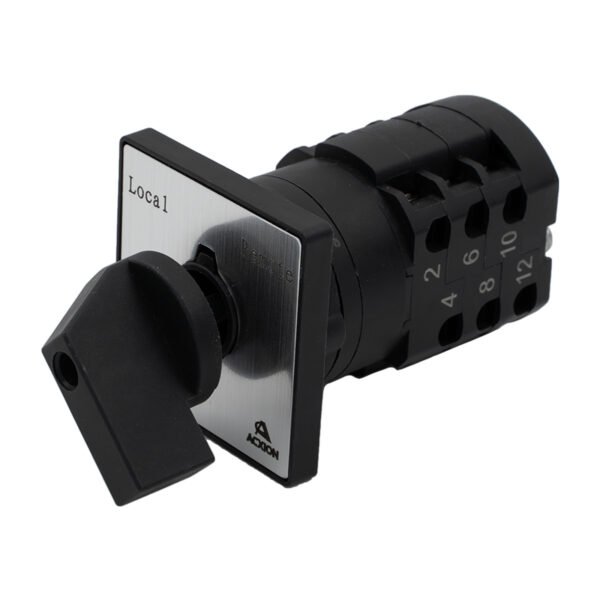

3 Terminal General Type Cam Switch

ACXION 3 Terminal General Type Cam Switch is a front-panel rotary selector switch with a 3-terminal wiring layout, designed for control panels where simple circuit selection is needed without key-operated access control. The 3-terminal configuration keeps wiring clean and installation fast — making it a go-to choice for high-volume OEM/ODM panel builders who assemble large quantities of distribution boards, HVAC control panels, and industrial machinery cabinets.

At ACXION, the 3-terminal general type is one of our highest-volume production switches. Because of that, we maintain tighter-than-standard tolerances on contact gap consistency across batches — panel builders assembling hundreds of identical units need every switch to perform the same way, and batch variation is where quality problems typically show up in high-volume assembly.

Features

3-terminal wiring layout: One common and two switched outputs cover the most common selector switch applications — on/off/auto, open/close, manual/remote — without unnecessary terminal complexity
No key required: Standard rotary knob operation for panels where open access is acceptable and installation speed matters
Up to 16 positions and 12 sections: Sufficient range for most industrial selector applications within a compact switch body
Dual terminal compatibility: Accepts Y-type and OT-type crimp terminals directly at the screw terminals
Laser-engraved panel text: Any language supported; permanent marking suited to equipment destined for multiple export markets

Specifications

Rated Current: Up to 20A
Positions: Up to 16
Sections: Up to 12
Step Angle: Min. 22.5°; standard: 30° / 45° / 60° / 90°
Terminal Type: Y-type and OT-type screw terminals (3-terminal configuration)
Mechanical Life: Up to 1,000,000 cycles
Electrical Life: Customizable up to 1,000,000 cycles
Operating Temperature: -25°C to +55°C
Humidity: ≤95% RH at 25°C (non-condensing)
Standards: IEC 60947-5-1 / GB14048.5
Certifications: CCC, CE

Frequently Asked Questions

Q1: What is the difference between the 3 Terminal General Type and the standard General Type Cam Switch?

The terminal count is the key difference. The standard General Type Cam Switch has more terminal connection points, making it suitable for circuits with multiple parallel branches or more complex wiring layouts. The 3-terminal version simplifies this to three connection points — one common and two switched paths — which is sufficient for most straightforward selector applications and results in faster wiring during panel assembly. If your switching diagram has only three conductors at the switch, this model is the more practical and cost-effective choice.

Q2: Is this switch suitable for high-volume OEM panel production?

Yes, this is one of the most common configurations we supply to OEM panel builders. The 3-terminal general type is designed for consistency across large batches — standard cam profiles, predictable dimensions, and stable contact performance make it easy to integrate into a repeatable assembly process. We can discuss batch scheduling and consistent lead times for ongoing OEM supply arrangements.

Q3: Can the panel engraving match our house standard or end-customer requirements?

Yes. Laser engraving is available in any language or character set based on your text or layout file. For OEM buyers supplying equipment to multiple markets, we can engrave different panel text variants within the same production run — contact us to discuss how to manage this efficiently for your order.

Q4: What is the difference between this switch and the 3 Terminal Key Type Cam Switch?

The only difference is the operating mechanism. The 3 Terminal Key Type requires a physical key to rotate the switch, adding access control for environments where unauthorized operation must be prevented. The 3 Terminal General Type uses a standard rotary knob with no key — faster to operate and lower cost, suitable for panels with their own access controls or where open switching is acceptable. The electrical specifications and terminal layout are otherwise equivalent.

Q5: How do you handle quality consistency for repeat OEM orders placed across multiple production batches?

We retain the cam tooling and contact specifications from your first approved order and apply them to all subsequent batches. For OEM customers with ongoing supply requirements, we recommend providing a first-article inspection sample approval — once that is signed off, we produce against the same specification each time. Contact us to discuss what documentation and approval process works best for your procurement team.
