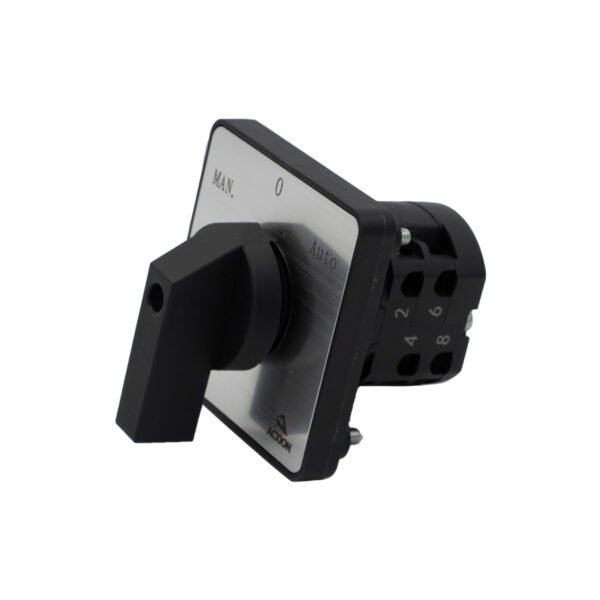

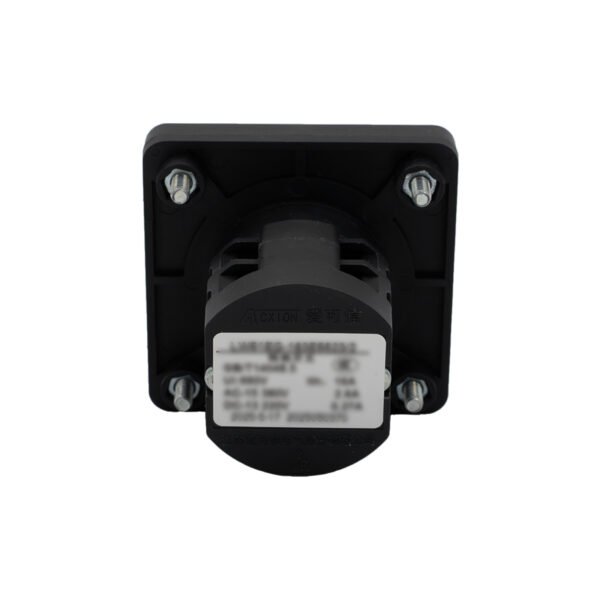

General Type Cam Switch

Features

Wide application range: Suitable for motor forward/reverse control, MAN/AUTO/OFF mode selection, voltmeter and ammeter phase switching, and general circuit selection in industrial panels
Modular section design: Up to 12 independent contact sections stackable on a single shaft — reducing the number of separate switches needed in a panel and simplifying wiring
Flexible step angles: Minimum step angle 22.5°; standard options of 30°, 45°, 60°, and 90° allow the handle travel to match your panel layout and operator preference

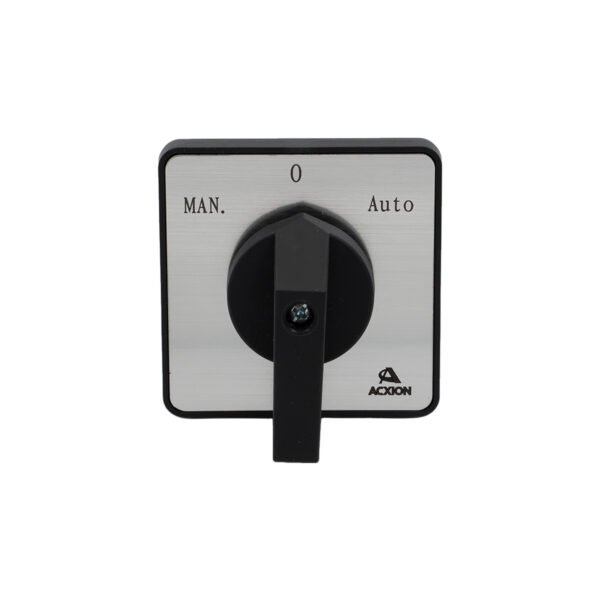

Silk-screen or laser panel marking: Front panel markings available in Chinese, English, Russian, and other languages to suit your target market
High-volume OEM supply: Consistent production quality backed by in-house manufacturing from injection molding through final assembly and testing

Specifications

Rated Current: Up to 20A
Positions: Up to 16
Sections: Up to 12
Step Angle: Min. 22.5°; standard: 30° / 45° / 60° / 90°

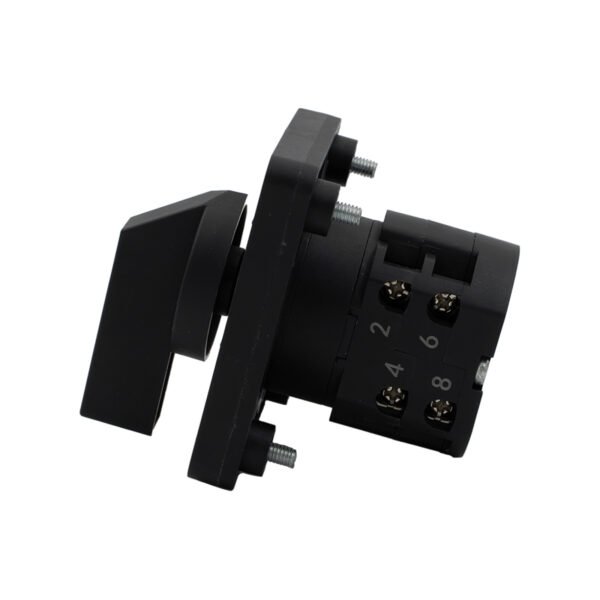

Terminal Type: Y-type and OT-type screw terminals
Mechanical Life: Up to 1,000,000 cycles
Electrical Life: Customizable up to 1,000,000 cycles
Operating Temperature: -25°C to +55°C
Humidity: ≤95% RH at 25°C (non-condensing)
Standards: IEC 60947-5-1 / GB14048.5
Certifications: CCC, CE

Frequently Asked Questions

Q1: What is a general type cam switch and how is it different from a key type?

A general type cam switch uses a standard rotary knob that anyone can operate by hand — no key required. A key type requires a physical key to turn the switch, adding a layer of access control. General type switches are used where unrestricted manual operation is acceptable, such as in enclosed machine cabinets or operator panels with their own access controls. Key type switches are used where unauthorized switching must be prevented, such as outdoor substations or unmanned distribution rooms.

Q2: What are the typical applications for this switch in industrial panels?

Common uses include motor forward/reverse selection, manual/auto/off mode switching, phase selector for panel meters (voltmeter and ammeter), and multi-feeder or multi-circuit selection. The modular section design means one switch can handle several circuits simultaneously, which is why it is widely used in motor control centers and distribution panels.

Q3: Can I get a custom switching sequence for my specific panel design?

Yes. Provide us with a switching table — showing which contacts should be open or closed in each position — and we will configure the cam profile accordingly. This is a standard service for OEM buyers. A switching diagram confirming the configuration is included with each custom order.

Q4: What is the minimum order quantity for OEM supply?

Contact us with your required specifications and we will advise on minimum quantities and lead times. We work with both small-batch orders for panel builders and larger production runs for equipment manufacturers.

Q5: Does this switch comply with international standards for export markets?

Yes. The ACXION General Type Cam Switch is manufactured to IEC 60947-5-1 and GB14048.5, and carries both CCC and CE certifications. These cover the major requirements for distribution equipment in China, Europe, the Middle East, and Southeast Asia. Full certification documentation is available on request for project submissions.
