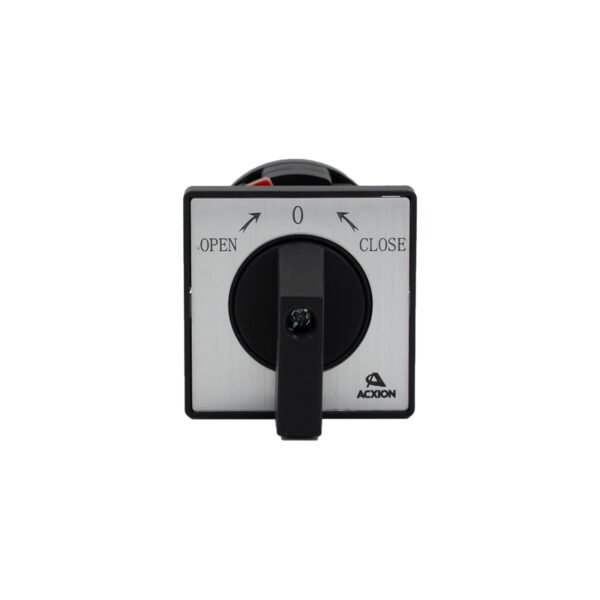

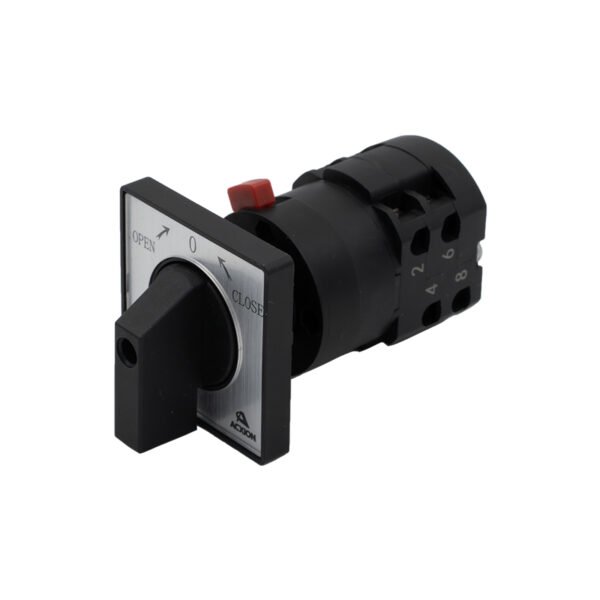

Central Mounting Cam Switch

Features:

1. Reliable Connection: Compatible with both Y-type and OT-type terminal screw crimping.

2. Long Lifespan: Mechanical life up to 1 million cycles; electrical life customizable up to 1 million cycles.

3. Multiple Positions Angles: Supports up to 16 positions; minimum switching angle 22.5; common angles available in 30 / 45 / 60 / 90.

4. Multiple Stages: Up to 12 stages supported.

5. Customizable Panel Markings: Panel can be engraved in Chinese, English, Russian, and more, using laser engraving for long-lasting clarity without fading.

6. High Current Capacity: Maximum heating current up to 20A.

Applications:

The ACXION Central Mounting Cam Switch is a high-precision rotary control interface engineered for streamlined panel integration and multi-stage operational sequencing:

Industrial Automation: Executes manual/auto mode selection and localized circuit commutation for automated assembly lines.

Switchgear Power Distribution: Serves as a critical interface for circuit isolation and phase monitoring within modular control cabinets.

HVAC Climate Control: Integrated into industrial ventilation units for reliable motor-speed regulation and system mode switching.

Elevator Systems: Facilitates fundamental maintenance-mode toggling and lighting control within machine room control suites.

Food Beverage: Provides robust power-load management for professional processing and catering equipment.

Machine Tool Engineering: Optimized for axis selection and spindle control in conventional and CNC machinery.

Global Engineering Compatibility: Designed to align with international technical standards, the modular construction of the ACXION Central Mounting Cam Switch ensures high adaptability for multi-scenario industrial applications and large-scale global engineering projects.

Operating Environment:

Temperature: -25℃ to +55℃

Humidity: 95% (at 25℃, non-condensing)

Safety Certification:

Complies with IEC60947-5-1 / GB14048.5 standards; CCC and CE certified.
