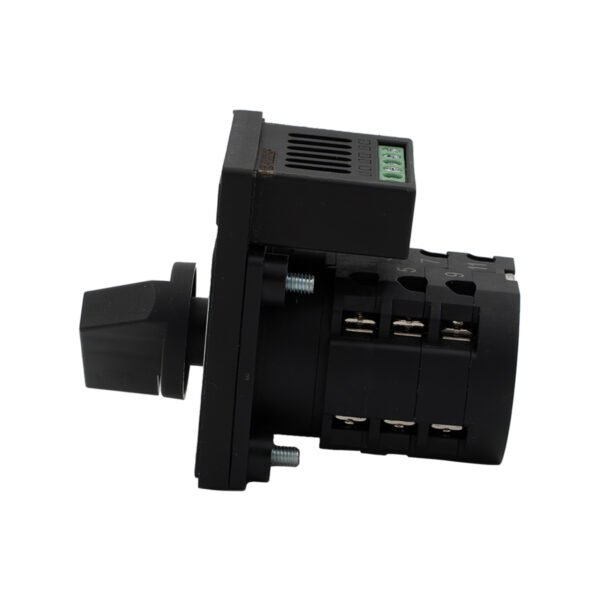

Dual-Indicator Cam Switch

Features

Two integrated indicator lamps: Standard configuration is red and green; lamp colors customizable on request to match your panel wiring conventions
Simplified status display: Ideal for two-state switching applications — eliminates the need for separate indicator lights while keeping the panel layout clean
Space-efficient design: Switch and lamps share a single panel cutout, reducing fabrication work and freeing up panel real estate for other components
Flexible position and section configuration: Up to 16 positions and 12 sections accommodate a wide range of circuit switching requirements
Laser-engraved panel text: Permanent engraving in any language — suitable for export panels requiring local-language labeling

Specifications

Rated Current: Up to 20A
Positions: Up to 16
Sections: Up to 12
Step Angle: Min. 22.5°; standard: 30° / 45° / 60° / 90°
Terminal Type: Y-type and OT-type screw terminals
Indicator Lamps: 2 lamps; default red / green; colors customizable
Mechanical Life: Up to 1,000,000 cycles
Electrical Life: Customizable up to 1,000,000 cycles
Operating Temperature: -25°C to +55°C
Humidity: ≤95% RH at 25°C (non-condensing)
Standards: IEC 60947-5-1 / GB14048.5
Certifications: CCC, CE

Frequently Asked Questions

Q1: What is the difference between a dual-indicator and a three-lamp cam switch?

The dual-indicator cam switch has two indicator lamps; the three-lamp version has three. The choice depends on how many operating states your application needs to display. For simple two-state applications — such as running/stopped, on/off, or local/remote — two lamps are sufficient and the dual-indicator version is the more cost-effective choice. If your panel needs to show a third state such as fault, standby, or auto mode, the three-lamp version is more appropriate.

Q2: Can I specify which colors the two lamps use?

Yes. The default is red and green, which is the most common convention for stopped/running or fault/normal indication. If your panel design or end-user standard requires a different color combination, specify this when placing your order. Custom lamp color configurations are available for qualifying quantities.

Q3: Is this switch suitable for LOCAL / REMOTE control panels?

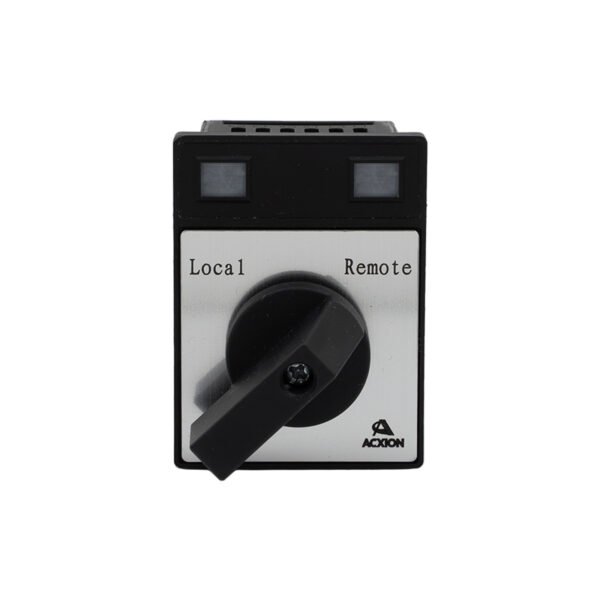

Yes. LOCAL/REMOTE is one of the most common applications for a dual-indicator cam switch — one lamp indicates local control is active, the other indicates remote. The switch position selects the control mode while the lamps provide immediate visual confirmation of which mode is in effect, without the operator needing to read the panel label.

Q4: What certifications does this product carry for export markets?

The ACXION Dual-Indicator Cam Switch is CCC and CE certified and manufactured to IEC 60947-5-1 and GB14048.5. These certifications cover the requirements for most distribution and industrial panel applications in China, Europe, the Middle East, and Southeast Asia. Certificate copies are available on request.

Q5: Can we order samples before committing to a bulk quantity?

Yes. Sample orders are available so you can verify the switch dimensions, lamp visibility, wiring layout, and overall fit within your panel design before placing a production order. Contact us with your required configuration and we will confirm sample availability and lead time.
