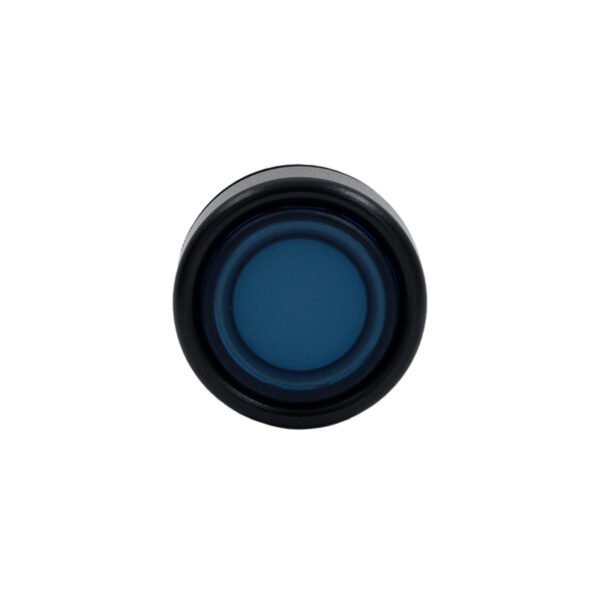

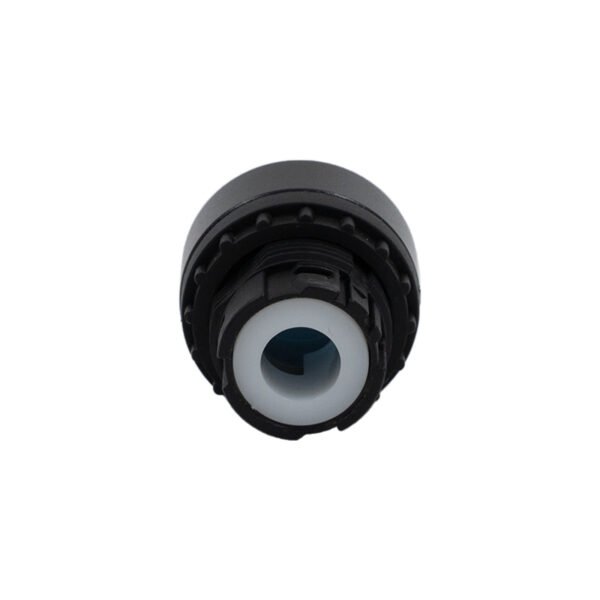

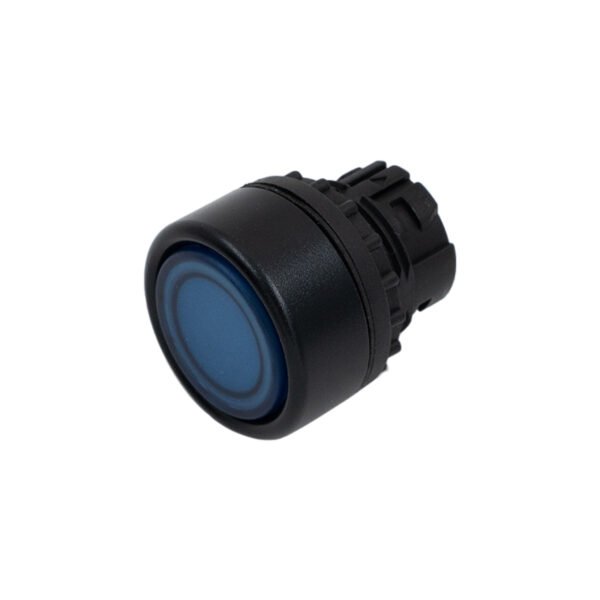

Latching Illuminated Flat Push Button Switch Head
ACXION Latching Illuminated Flat Push Button Switch Head is a press-to-latch modular button head with built-in LED — for wholesale buyers and OEM/ODM panel assemblers to pair with contact blocks and build a complete latching illuminated push button switch. Available in red, green, yellow, blue, and white with IP65 protection as standard.
The ACXION Latching Illuminated Flat Push Button Switch Head is the operator interface component of a latching illuminated push button assembly. Unlike a momentary button that springs back when released, this head locks in the pressed position on the first press and releases on the second — maintaining the selected state without the operator holding it down. The built-in LED illuminates to show the current state, and the flat profile sits flush with the panel surface when pressed. The anti-rotation boss secures the head in the panel cutout. IP65 as standard, extendable to IP66.
SPECIFICATIONS:
Type: Latching flat push button with LED
Illumination: LED (color matches head)
Standard Colors: Red, Green, Yellow, Blue, White
IP Rating: IP65 standard; IP66 available
Mechanical Life: 1,000,000 cycles
Operating Temperature: -25°C to +70°C
Standards: IEC 60947-5-1 / GB14048.5
Certifications: CCC, CE
APPLICATIONS:
Suitable for industrial control panels, machine tool cabinets, production line consoles, HVAC equipment, and any application requiring a maintained on/off state with visual status indication.
FAQ:
Q1: What is the difference between a latching and a momentary push button head?
A latching head locks in position when pressed and stays there until pressed again. A momentary head springs back to its original position as soon as you release it. Choose latching when the activated state needs to be maintained without the operator holding the button — such as for power on/off or mode activation.
Q2: Does this head come with contact blocks included?
No, this is the head unit only. Contact blocks and mounting frame are sold separately and need to be ordered together to assemble a complete switch.
Q3: Can I replace just the head without changing the contact blocks?
Yes. The head can be replaced independently without rewiring the contact blocks behind the panel, which is practical when the head is worn or damaged but the electrical components are still functional.
Q4: Do you support OEM and ODM orders?
Yes. ACXION is a factory-direct supplier based in Jiangsu, China. We support OEM and ODM orders and can provide CCC and CE certification documentation. Contact us for factory pricing and minimum order quantities.
