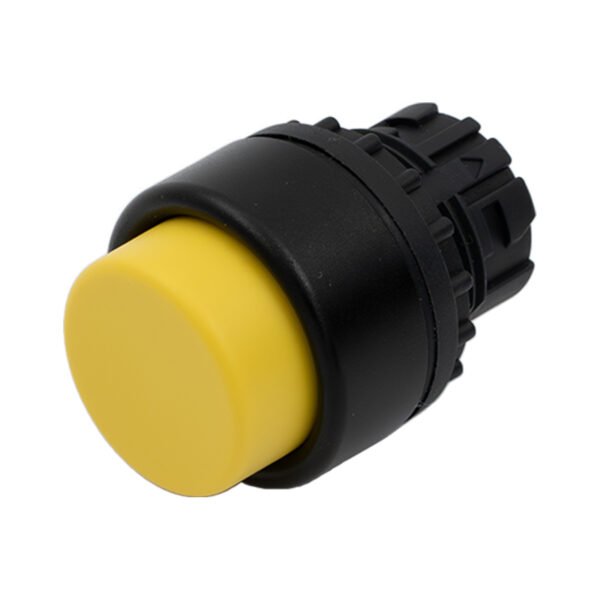

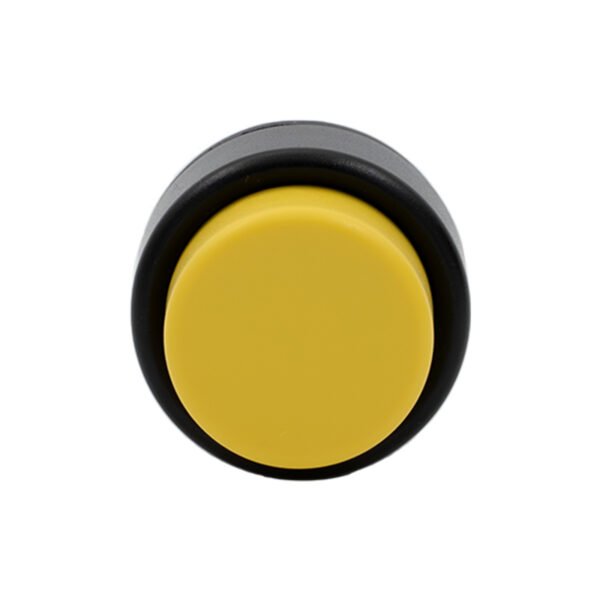

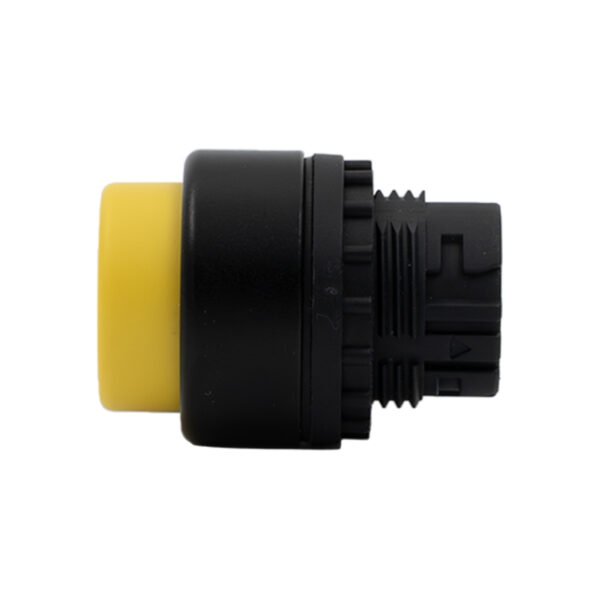

Momentary Raised Push Button Switch Head
ACXION Momentary Raised Push Button Switch Head is a no-frills spring-return button head without illumination — the most straightforward option for panel builders and wholesale buyers who need reliable momentary action and easy operability at the lowest unit cost. Available in multiple colors with IP65 protection as standard.
The Momentary Raised Push Button Switch Head pairs with contact blocks and a mounting frame to form a complete momentary push button switch. No LED, no key, no latching mechanism — just a raised button that activates on press and returns immediately on release. The raised profile sits above the panel surface, making it the easiest button type to locate and operate quickly without looking, which is why it remains the most widely used head type in industrial control panels worldwide. Where status indication is not needed at the button itself, this non-illuminated version keeps the assembly simple and the per-unit cost down for bulk orders.
SPECIFICATIONS:
Type: Momentary raised push button, no illumination
Standard Colors: Red, Green, Yellow, Blue, White
IP Rating: IP65 standard; IP66 available
Mechanical Life: 1,000,000 cycles
Operating Temperature: -25°C to +70°C
Standards: IEC 60947-5-1 / GB14048.5
Certifications: CCC, CE
APPLICATIONS:
The most widely used push button head type in industrial control panels, machine tool consoles, motor control centers, conveyor stations, and production line equipment worldwide.
FAQ:
Q1: Why choose a non-illuminated head over an illuminated one?
When status indication is handled elsewhere in the panel — through a dedicated indicator light, PLC display, or HMI — adding an LED to every button is unnecessary cost and extra wiring. The non-illuminated head keeps the assembly simpler and reduces the component count per button station.
Q2: Why is the raised profile preferred in industrial environments?
The raised button is easier to locate by feel and press quickly without looking down at the panel — important in fast-moving production environments where operators need to react immediately. It also provides clearer tactile feedback than a flat head, confirming the button has been fully pressed.
Q3: What is the minimum order for wholesale pricing?
Contact us with your required quantity and color breakdown for factory-direct pricing. We support both sample orders for initial testing and larger batch orders for production panels.
