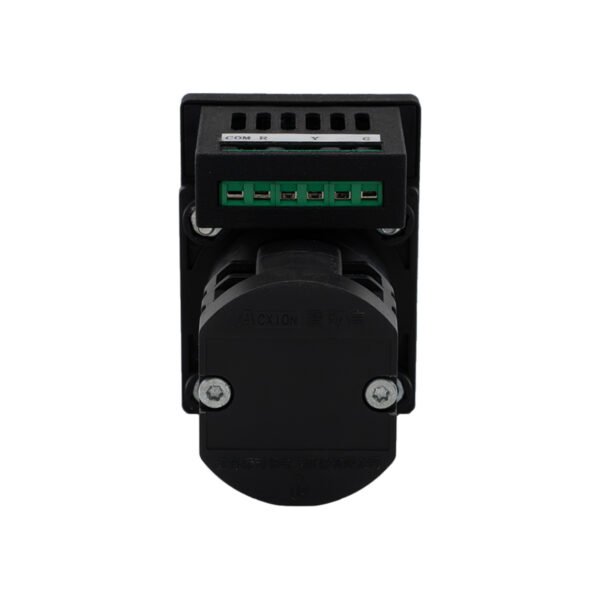

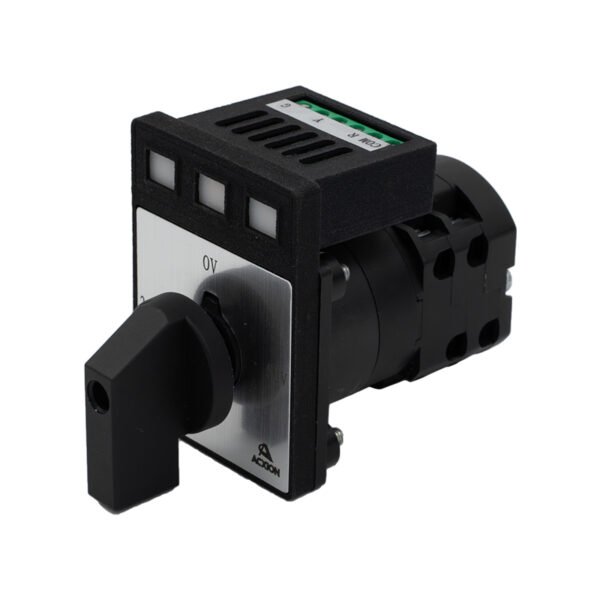

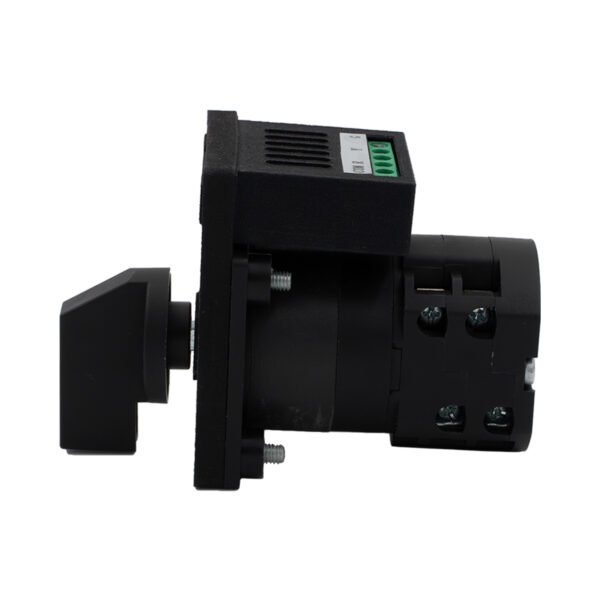

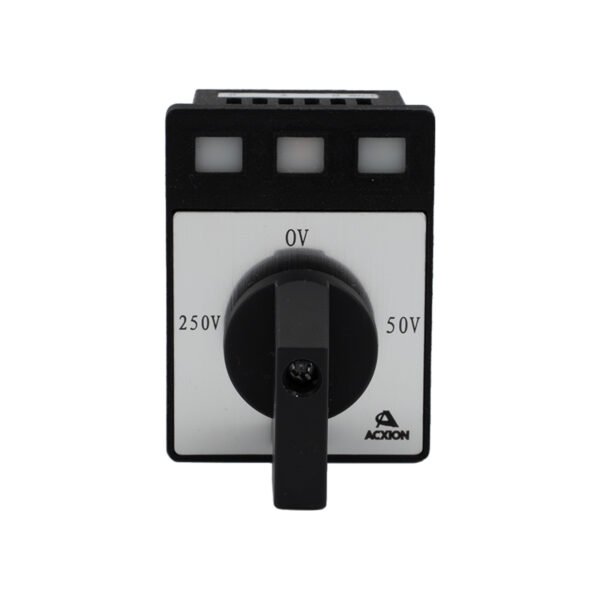

Three-Lamp Cam Switch
This Three-Lamp Cam Switch offers multi-position operation, multiple contact configurations, versatile panel engraving options, high current capacity, and indicator lamps.
Features:
1. Reliable connection: Compatible with both Y-type and OT-type screw terminals.
2. Long lifespan: Mechanical life up to 1 million cycles; customizable electrical life up to 1 million cycles.
3. Multi-position angle: Up to 16 positions, minimum angle 22.5, commonly 30/45/60/90.
4. Multiple sections: Up to 12 sections.
5. Versatile panel content: Can engrave Chinese, English, Russian, etc., using laser engraving for long-lasting clarity.
6. High current: Maximum heating current 20A.
7. Indicator lamps: Default red, green, and yellow; other colors customizable.
Applications:
ACXION Three-Lamp Cam Switch is ideal for State Grid / Southern Grid distribution cabinets.
Operating Environment:
Temperature: -25℃ to +55℃
Humidity: 95% (at 25℃, non-condensing)
Safety Certification:
Complies with IEC60947-5-1 / GB14048.5 standards; CCC and CE certified.
